Gas station

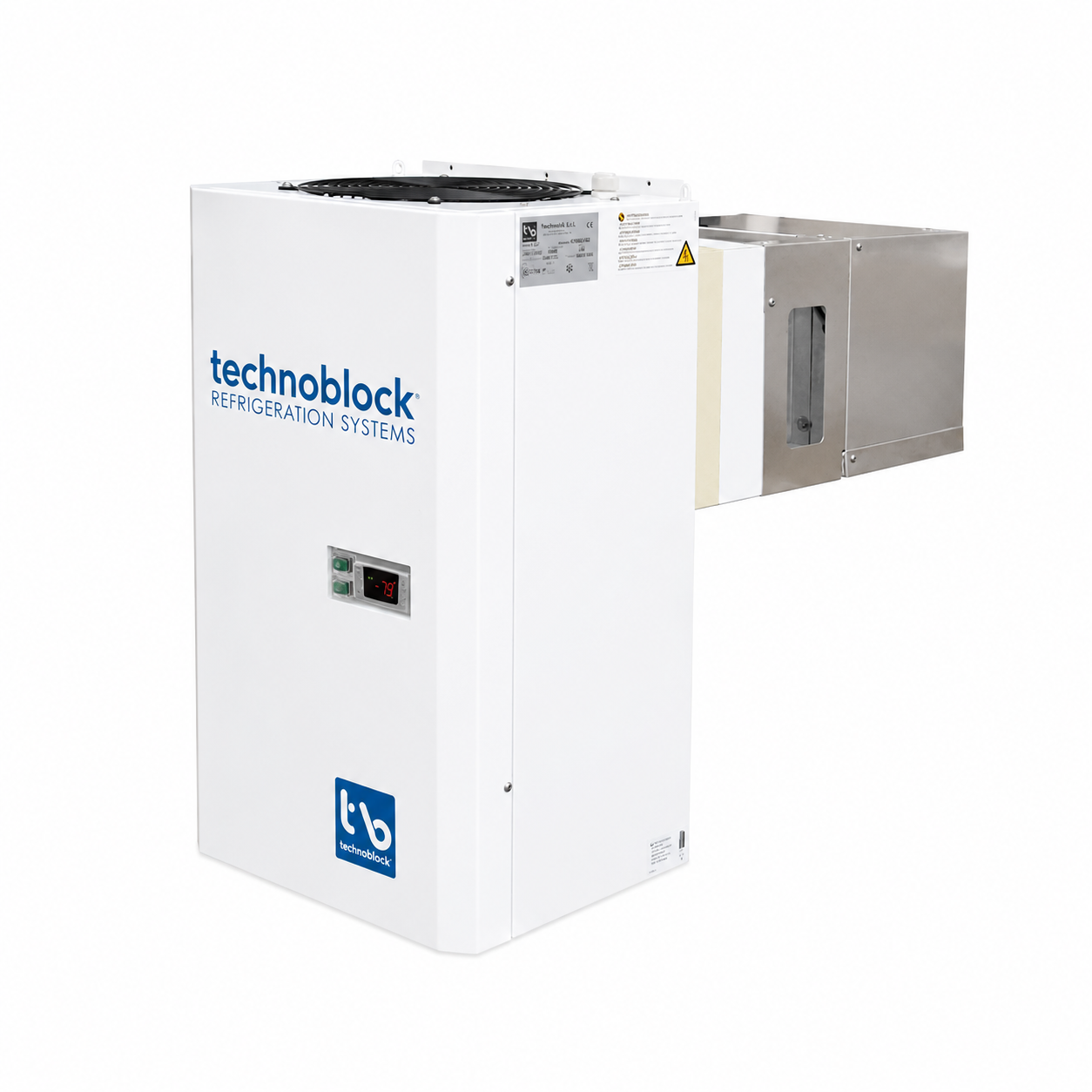

Gas station TS
FEATURES
- Electronic control instrument.
- Expansion type: capillary tube.
- Filter on the liquid line of molecular sieve type.
- Cable for connecting door heater in low-temperature unit.
- Waste water evaporation pan and overflow pipe for all units.
- Condensate drain heater in all units.
- Cell wall installation with hole for pad.
- We recommend using the unit in environments with temperatures above 10°C. When installing in environments with temperatures below 10°C, the ‘use of optional accessories is required. In addition, if the unit is installed outdoors, it is necessary to protect the unit from the weather.
| TN | TB | |
|---|---|---|
| Temperatura cella | +5/-5 °C | -18/-25 °C |
| Potenza frigorifera | 370 / 2258 W | 400 / 1275 W |
| Volume cella | 2,2 / 29,5 m³ | 2,7 / 13,9 m³ |
MODEL VARIANTS
PRODUCT INFORMATION
Technical Data
Description
Accessories
Technical Data
Cell temperature
TX +5 ÷ -5°C
TN-U +5 TO -5°C
TZ -18 TO -25°C
TB-U -15 ÷ -25°C
TX +5 ÷ -5°C
TN-U +5 TO -5°C
TZ -18 TO -25°C
TB-U -15 ÷ -25°C
Cell volume
2 / 29 m³
2 / 29 m³
Cooling capacity
350 / 2200 W
350 / 2200 W
Gas
R404A, R448A, R449A
R404A, R448A, R449A
Gas
R452A
R452A
Average temperature
+5 ÷ -5°C
+5 ÷ -5°C
Low temperature
TZ -18 TO -25°C
TB-U -15 ÷ -25°C
TZ -18 TO -25°C
TB-U -15 ÷ -25°C
Description
- Electronic control instrument.
- Expansion type: capillary tube.
- Filter on the liquid line of molecular sieve type.
- Cable for connecting door heater in low-temperature unit.
- Waste water evaporation pan and overflow pipe for all units.
- Condensate drain heater in all units.
- Cell wall installation with hole for pad.
- We recommend using the unit in environments with temperatures above 10°C. When installing in environments with temperatures below 10°C, the ‘use of optional accessories is required. In addition, if the unit is installed outdoors, it is necessary to protect the unit from the weather.
Accessories
- Electronic control instrument.
- Expansion type: capillary tube.
- Filter on the liquid line of molecular sieve type.
- Cable for connecting door heater in low-temperature unit.
- Waste water evaporation pan and overflow pipe for all units.
- Condensate drain heater in all units.
- Cell wall installation with hole for pad.
- We recommend using the unit in environments with temperatures above 10°C. When installing in environments with temperatures below 10°C, the ‘use of optional accessories is required. In addition, if the unit is installed outdoors, it is necessary to protect the unit from the weather.
