Monoblock

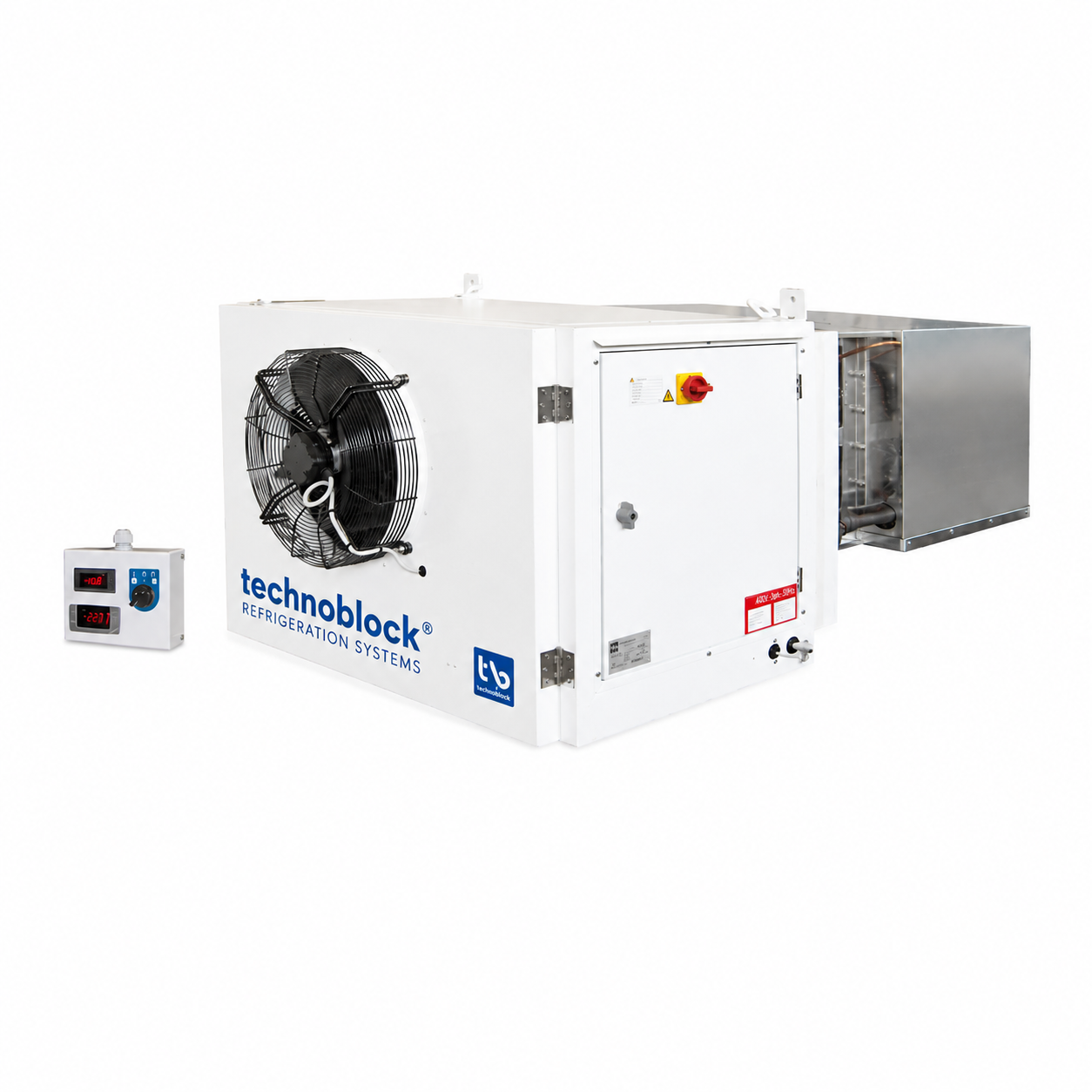

Monoblock TI
FEATURES
- Electronic controller with alarm module.
- Expansion type with thermostatic valve.
- All compressors are equipped with crankcase preheating resistor.
- Semi-hermetic compressors are equipped with a thermistor; a differential oil protection pressure switch is installed on models equipped with an oil pump.
- Compressors with displaced volume above 52 m3 /h are part-winding type starting.
- All units are equipped with adjustable low-pressure and high-pressure switches in accordance with the 2014/68/EU “Pressure Equipment” Directive.
- Liquid indicator. – Solenoid valve on the liquid line.
- All units are equipped with a liquid receiver and, with the exception of form 1 units, a safety valve, in accordance with Directive 2014/68/EU “Pressure Equipment.”
- Finned pack heat exchanger.
- Condenser fan control pressure switch. On request, it can be replaced by the electronic variable speed drive of condenser fans.
- Separate actuator safety switches installed on condenser doors.
- Remote control panel including keypad, alarm display, and 5 m long cable already connected to ‘unit (can be supplied on request with different lengths up to 20 meters).
- Direct condensate water discharge.
- Resistance in the condensate drain.
- Installation of the wall-mounted monoblock.
- Resistances around the mouthpiece of evaporator fans in freezing units.
| TN | TB | PL | FR | |
|---|---|---|---|---|
| Temperatura cella | +5/-5 °C | -18/-25 °C | +5/-5, -18/-25 °C | -25/-45 °C |
| Potenza frigorifera | 1108 / 38635 W | 1094 / 33144 W | 1069 / 41019 W | 3643 / 20493 |
| Volume cella | 11,5 / 1253 m³ | 10,4 / 1534,60 m³ | 9,8 / 1384,2 m³ | / |
MODEL VARIANTS
PRODUCT INFORMATION
Technical Data
Description
Accessories
Technical Data
Cell temperature
TY +15 ÷ +5°C
TX +5 ÷ -5°C
TZ -18 TO -25°C
PLX +5 ÷ -5°C / -18 ÷ -25°C
FRZ -25 ÷ -45°C
TY +15 ÷ +5°C
TX +5 ÷ -5°C
TZ -18 TO -25°C
PLX +5 ÷ -5°C / -18 ÷ -25°C
FRZ -25 ÷ -45°C
Cell volume
10 ÷ 1600 m3
10 ÷ 1600 m3
Cooling capacity
1000 ÷ 53000 W
1000 ÷ 53000 W
Gas
R404A, R448A, R449A
R404A, R448A, R449A
Gas
R452A
R452A
High temperature
+15° ÷ +5°
+15° ÷ +5°
Average temperature
+5° ÷ -5°
+5° ÷ -5°
Low temperature
-18° ÷ -25° C
-18° ÷ -25° C
Polyvalent temperature
+5° ÷ -5°
-18° ÷ -25° C
+5° ÷ -5°
-18° ÷ -25° C
Freezing temperature
-25 ÷ -45°C
-25 ÷ -45°C
Description
- Electronic controller with alarm module.
- Expansion type with thermostatic valve.
- All compressors are equipped with crankcase preheating resistor.
- Semi-hermetic compressors are equipped with a thermistor; a differential oil protection pressure switch is installed on models equipped with an oil pump.
- Compressors with displaced volume above 52 m3 /h are part-winding type starting.
- All units are equipped with adjustable low-pressure and high-pressure switches in accordance with the 2014/68/EU “Pressure Equipment” Directive.
- Liquid indicator. – Solenoid valve on the liquid line.
- All units are equipped with a liquid receiver and, with the exception of form 1 units, a safety valve, in accordance with Directive 2014/68/EU “Pressure Equipment.”
- Finned pack heat exchanger.
- Condenser fan control pressure switch. On request, it can be replaced by the electronic variable speed drive of condenser fans.
- Separate actuator safety switches installed on condenser doors.
- Remote control panel including keypad, alarm display, and 5 m long cable already connected to ‘unit (can be supplied on request with different lengths up to 20 meters).
- Direct condensate water discharge.
- Resistance in the condensate drain.
- Installation of the wall-mounted monoblock.
- Resistances around the mouthpiece of evaporator fans in freezing units.
Accessories
https://technob.it/wp-content/uploads/2023/04/riscaldatore.png
https://technob.it/wp-content/uploads/2023/04/regolatore_velocita.png
https://technob.it/wp-content/uploads/2023/04/tensione_diversa.png
https://technob.it/wp-content/uploads/2023/04/resistenze_boccaglio.png
https://technob.it/wp-content/uploads/2023/04/condensazione_acqua.png
https://technob.it/wp-content/uploads/2023/04/monitor_tensione.png
