Bi-block

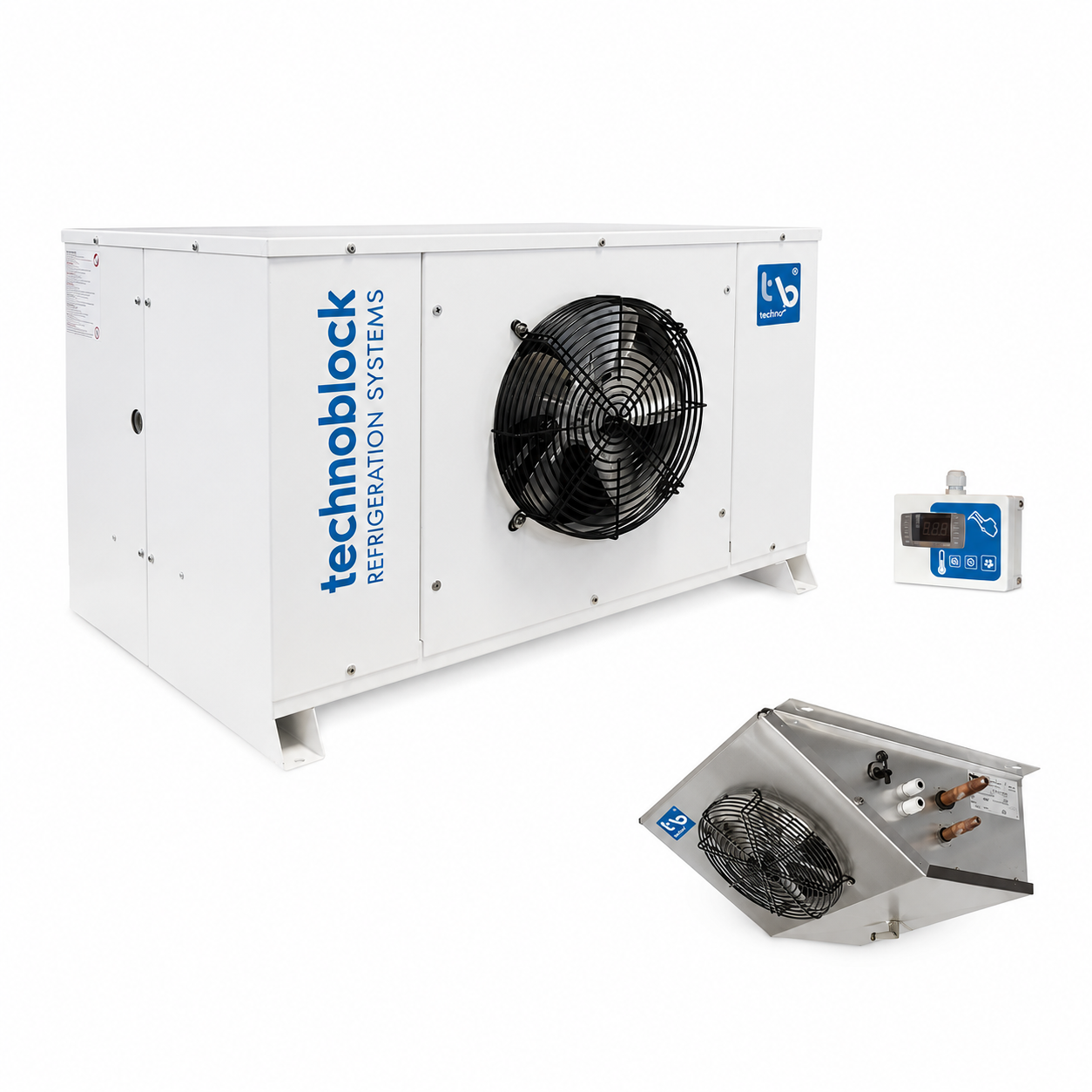

Bi-block BH
FEATURES
- Electronic control unit.
- Expansion type with thermostatic valve.
- Solid-body filter on the liquid line.
- Provision for connection of cell light and door micro.
- Cable for connecting the door heater in low-temperature units.
- All units are equipped with a fixed-setting low-pressure pressure switch; three-phase units and model BHTX122 are also supplied with a fixed-setting high-pressure switch, in accordance with the 2014/68/EU Pressure Equipment Directive. However, upon request, the high-pressure switch can also be supplied on units with 230/1/50Hz voltage.
- Unit supplied with remote control panel with cable length of 5 m (can be supplied with different lengths up to 20 m on request).
- Direct condensate water discharge.
- Resistance in the condensate drain.
- Installation of ‘condensing unit on the floor outside the cell, installation of ‘evaporator on the ceiling inside the cell.
- Liquid indicator.
- All models are supplied with liquid receiver, in accordance with the Pressure Equipment Directive 2014/68/EU.
- Piping connections between the condensing unit and evaporator are made without solder taps or flanges.
- Condensing unit suitable for outdoor installation. We recommend using the unit in environments with temperatures above 10°C. When installing in environments with temperatures below 10°C, the ‘use of optional accessories is required.
| TN | TB | |
|---|---|---|
| Temperatura cella | +5/-5 °C | -18/-25 °C |
| Potenza frigorifera | 691 / 4806 W | 590 / 3322 W |
| Volume cella | 2,31 / 100,57 m³ | 1,4 / 54,97 m³ |
MODEL VARIANTS
PRODUCT INFORMATION
Technical Data
Description
Accessories
Technical Data
Cell temperature
TX +5 ÷ -5°C
TZ -18 TO -25°C
TX +5 ÷ -5°C
TZ -18 TO -25°C
Cell volume
1,5 ÷ 100 m3
1,5 ÷ 100 m3
Power
600 ÷ 4800 W
600 ÷ 4800 W
Gas
R448A, R449A
R448A, R449A
Gas
R452A
R452A
Average temperature
+5° ÷ -5°
+5° ÷ -5°
Low temperature
-18° ÷ -25° C
-18° ÷ -25° C
Description
- Electronic control unit.
- Expansion type with thermostatic valve.
- Solid-body filter on the liquid line.
- Provision for connection of cell light and door micro.
- Cable for connecting the door heater in low-temperature units.
- All units are equipped with a fixed-setting low-pressure pressure switch; three-phase units and model BHTX122 are also supplied with a fixed-setting high-pressure switch, in accordance with the 2014/68/EU Pressure Equipment Directive. However, upon request, the high-pressure switch can also be supplied on units with 230/1/50Hz voltage.
- Unit supplied with remote control panel with cable length of 5 m (can be supplied with different lengths up to 20 m on request).
- Direct condensate water discharge.
- Resistance in the condensate drain.
- Installation of ‘condensing unit on the floor outside the cell, installation of ‘evaporator on the ceiling inside the cell.
- Liquid indicator.
- All models are supplied with liquid receiver, in accordance with the Pressure Equipment Directive 2014/68/EU.
- Piping connections between the condensing unit and evaporator are made without solder taps or flanges.
- Condensing unit suitable for outdoor installation. We recommend using the unit in environments with temperatures above 10°C. When installing in environments with temperatures below 10°C, the ‘use of optional accessories is required.
Accessories
Electric panel heater Solid body type filter on liquid line.
Only available on certain shapes. For more information, contact us!
High voltage pressure switch High pressure switch (only for voltage 230/1/50).
*Only available on certain models. For more information, contact us!
Fan control pressure switch Condensate fan control pressure switch.
*Only available on certain shapes. For more information, contact us!
Compressor preheating Compressor preheating.
*Only available on certain shapes. For more information, contact us!
Solenoid valve Solenoid valve on the delivery line.
*Only available on certain shapes. For more information, contact us!
Different voltage Solenoid valve on the delivery line.
*Only available on certain shapes. For more information, contact us!
Water condensation Pre-loaded hose and electric cable (connection between condensing and evaporating units) length 10 m.
Voltage monitor Pre-loaded hose and electric cable (connection between condensing and evaporating units) length 10 m.
Semi-hermetic compressors Pre-loaded hose and electric cable (connection between condensing and evaporating units) length 10 m.
Fittings for BH connection Fittings for connecting liquid and suction lines for the BH series.
