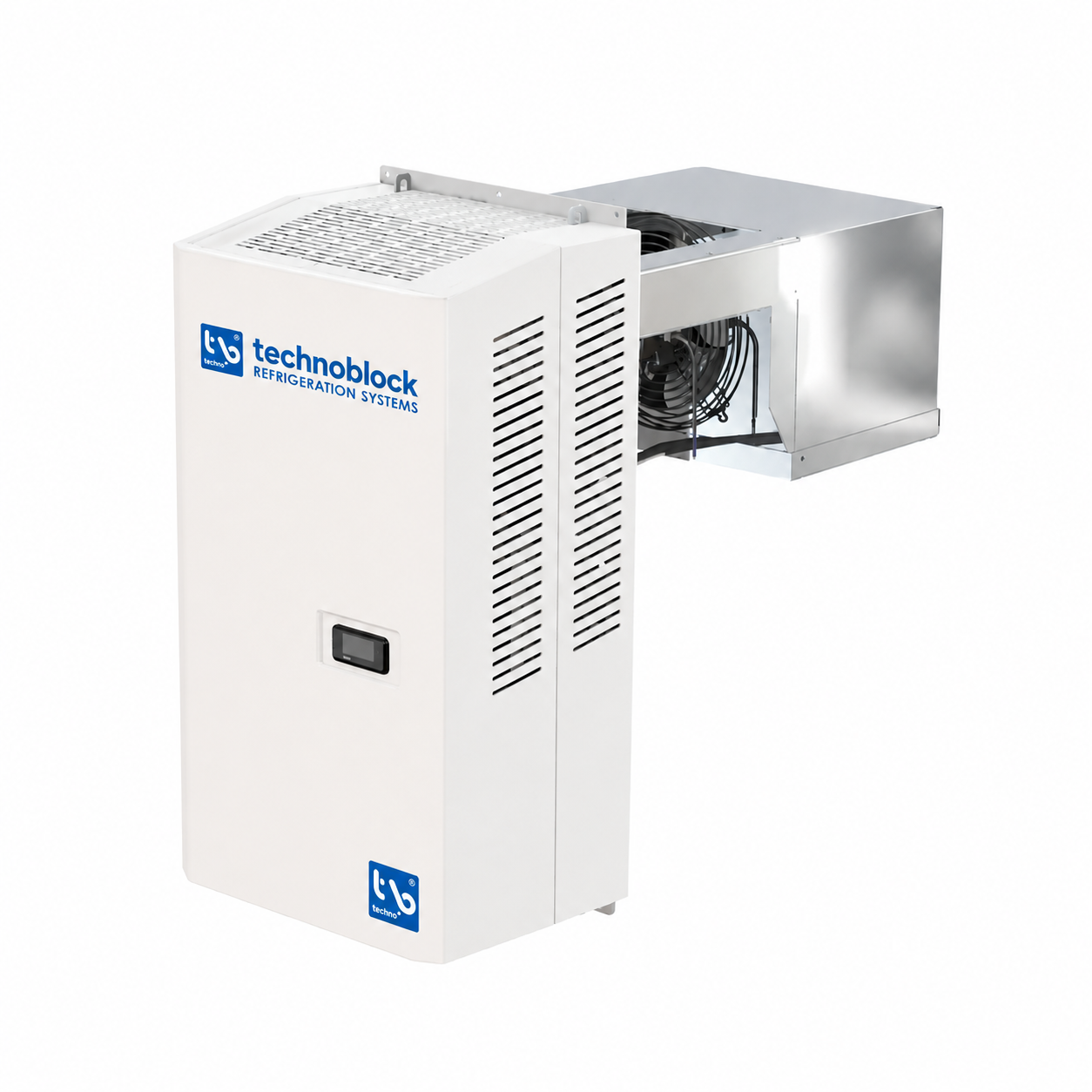

Monoblock
Monoblock ATS
FEATURES
- Low GWP machine of 3, in accordance with the European F-Gas standard.
- Condensing batteries optimized for energy efficiency.
- Low-noise hermetic reciprocating compressors.
- ATEX electronic condensing and evaporating fan motors.
- Standard XM670K electronic control unit with cell light management.
- Digital display.
- Self-extinguishing technopolymer electrical box IP56 with operating temperature -25°C +60°C.
- ATEX power relay.
- Quick electrical connections.
- In case of reduction or lack of gas charge, automatic activation of fans for decreasing gas concentration in the room, and compressor start lock.
- Indoor installation with ambient temperature range +10°C – +43°C.
- Maximum charge 150 gr/circuit with no installation limitation.
MODEL VARIANTS
PRODUCT INFORMATION
Technical Data
Description
Accessories
Technical Data
Cell temperature
TN-U +5 TO -5°C
TB-U -15 ÷ -25°C
TN-U +5 TO -5°C
TB-U -15 ÷ -25°C
Cell volume
TN-U 4 to 20 m3
TB-U 2.9 ÷ 11 m3
TN-U 4 to 20 m3
TB-U 2.9 ÷ 11 m3
Cooling capacity
TN-U 809 TO 2028 W
TB-U 680 ÷ 1050 W
TN-U 809 TO 2028 W
TB-U 680 ÷ 1050 W
Gas
R290, R448A, R449A, R452A
R290, R448A, R449A, R452A
Average temperature
-15 ÷ -25°C
-15 ÷ -25°C
Average temperature
+5 ÷ -5°C
+5 ÷ -5°C
Description
- Low GWP machine of 3, in accordance with the European F-Gas standard.
- Condensing batteries optimized for energy efficiency.
- Low-noise hermetic reciprocating compressors.
- ATEX electronic condensing and evaporating fan motors.
- Standard XM670K electronic control unit with cell light management.
- Digital display.
- Self-extinguishing technopolymer electrical box IP56 with operating temperature -25°C +60°C.
- ATEX power relay.
- Quick electrical connections.
- In case of reduction or lack of gas charge, automatic activation of fans for decreasing gas concentration in the room, and compressor start lock.
- Indoor installation with ambient temperature range +10°C – +43°C.
- Maximum charge 150 gr/circuit with no installation limitation.
